Audio Technica VM510CB Dual Moving Magnet Cartridge

$299.99
Available from Supplier

We can order in this item from our supplier, it usually ships from our store in 3-4 business days if the supplier has this item in stock.

Qty
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

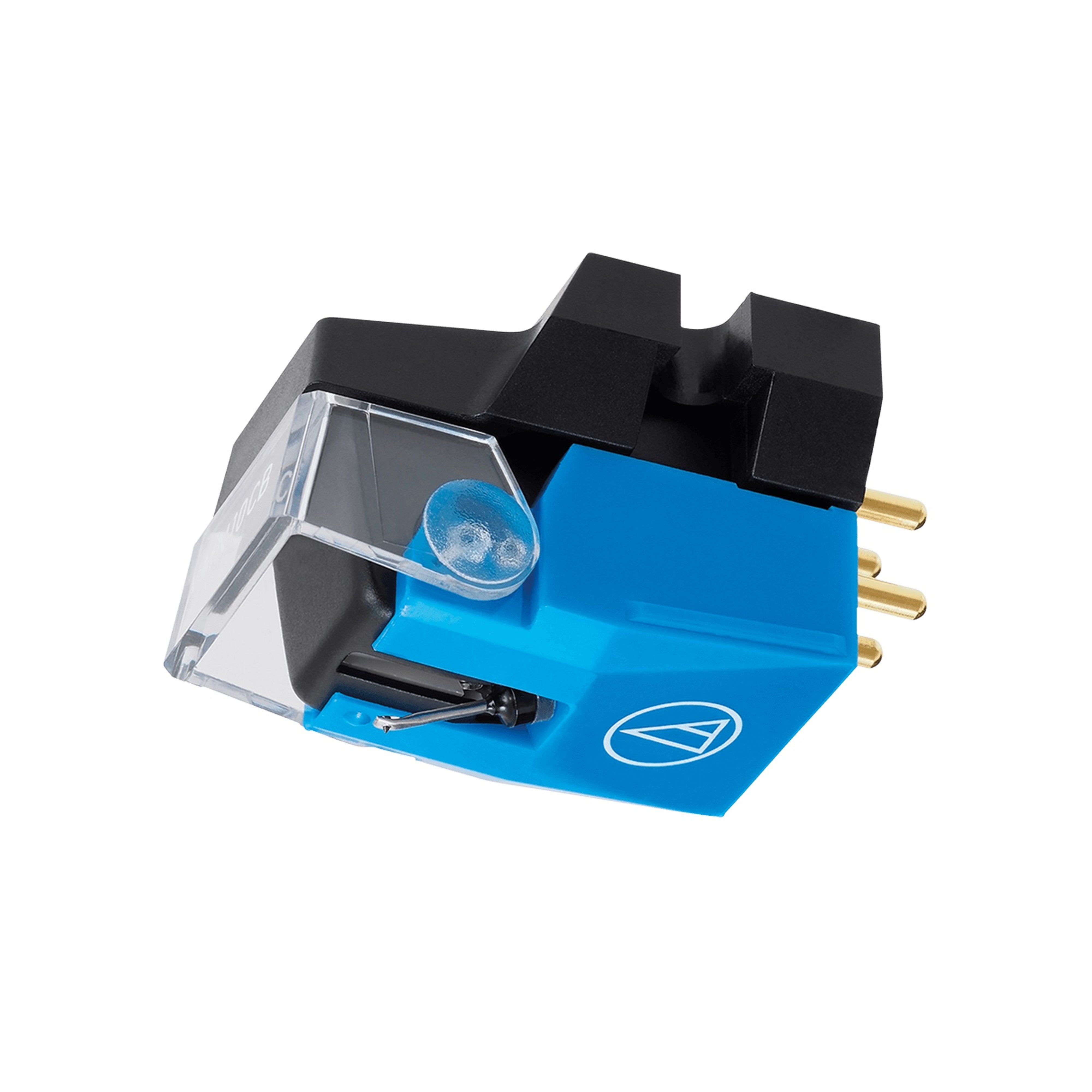

VM510CB

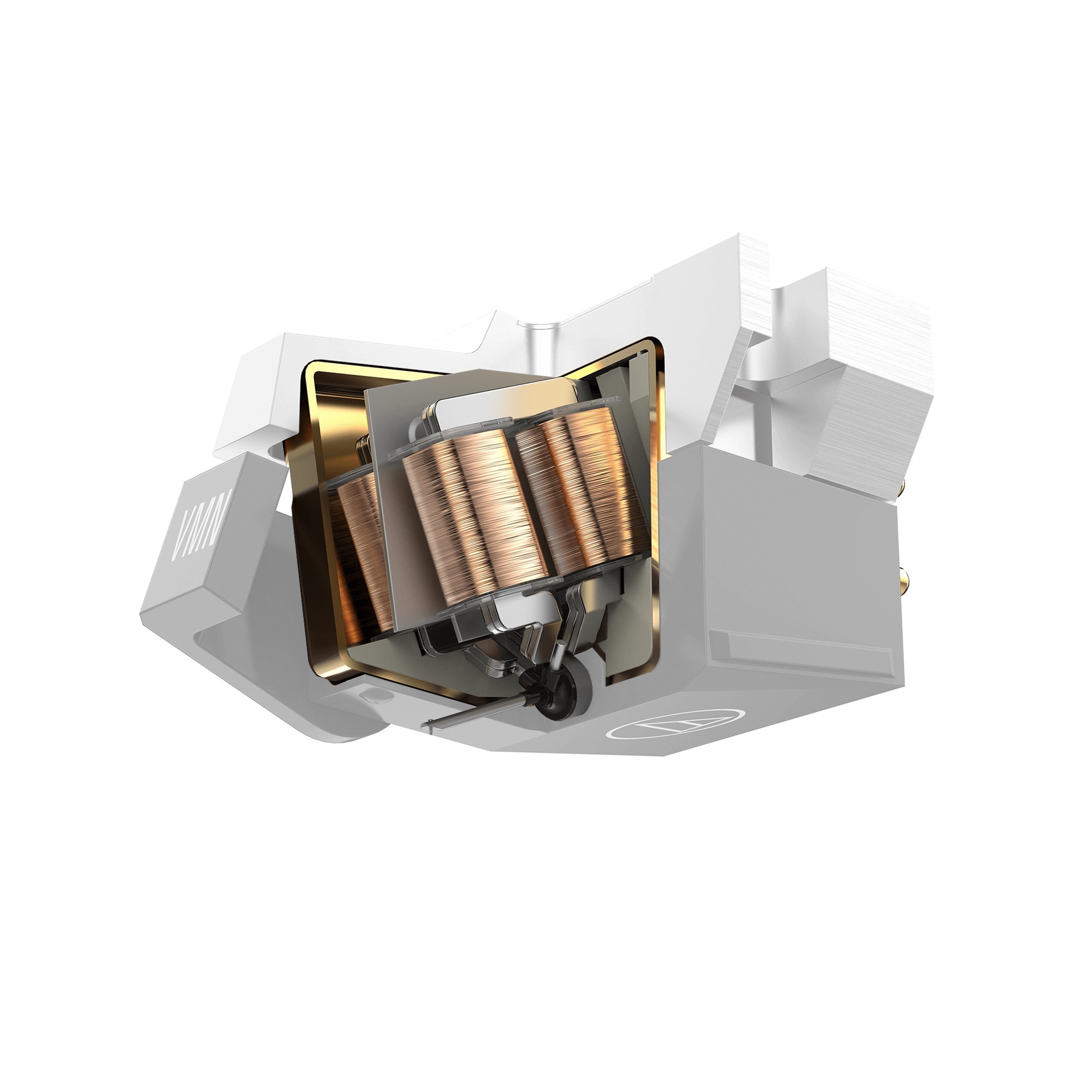

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.

Frequency Response

  • 20 - 20,000Hz

Channel Separation

  • 25dB (1kHz)

Vertical Tracking Angle

  • 23˚

Vertical Tracking Force

  • 1.8 to 2.2g (2.0g standard)

Stylus Construction

  • Bonded Round Shank

Recommended Load Impedance

  • 47,000Ω

Coil Impedance

  • 2,700Ω (1kHz)

Output Voltage

  • 5.0mV (1kHz, 5cm/sec.)

Output Channel Balance

  • 1.5dB (1kHz)

Stylus Shape

  • Conical Bonded

Cantilever

  • Aluminium Pipe

Static Compliance

  • 35 x 10-6 cm/dyne

Dynamic Compliance

  • 8 x 10-6 cm/dyne (100Hz)

Mounting

  • 1/2” centres

Dimensions

  • 17.3 (H) x 17.0 (W) x 28.2 (L) mm

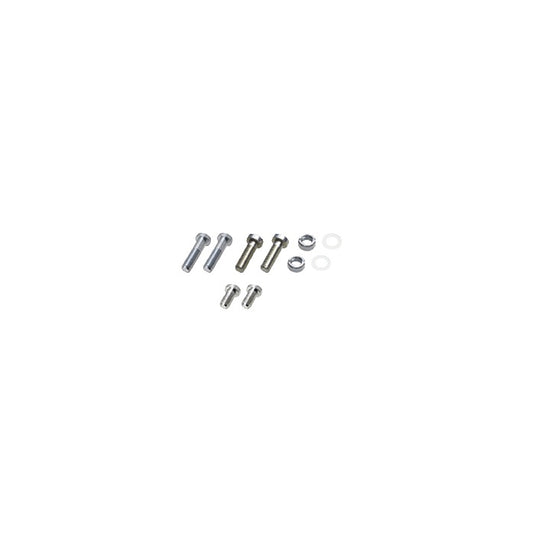

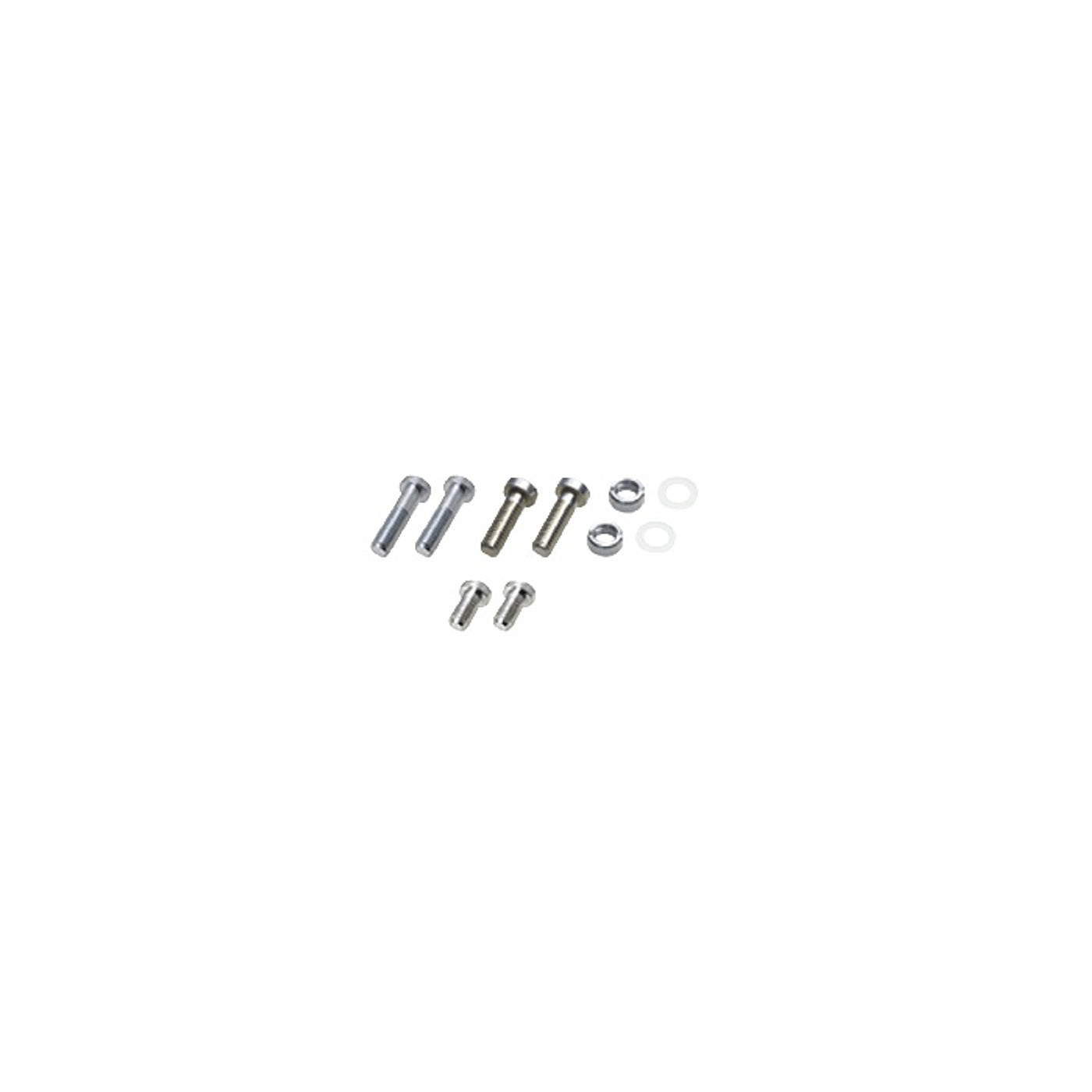

Accessories Included

  • Cartridge installation screws 5mm ×2 and 10mm ×2
  • Washer ×2
  • Hexagon nut ×2

Recommended Load Capacitance

  • 100 – 200pF

Replacement Stylus

  • VMN10CB

Stylus Size

  • 0.6 mil

Type

  • VM Type

Weight

  • 6.4g
