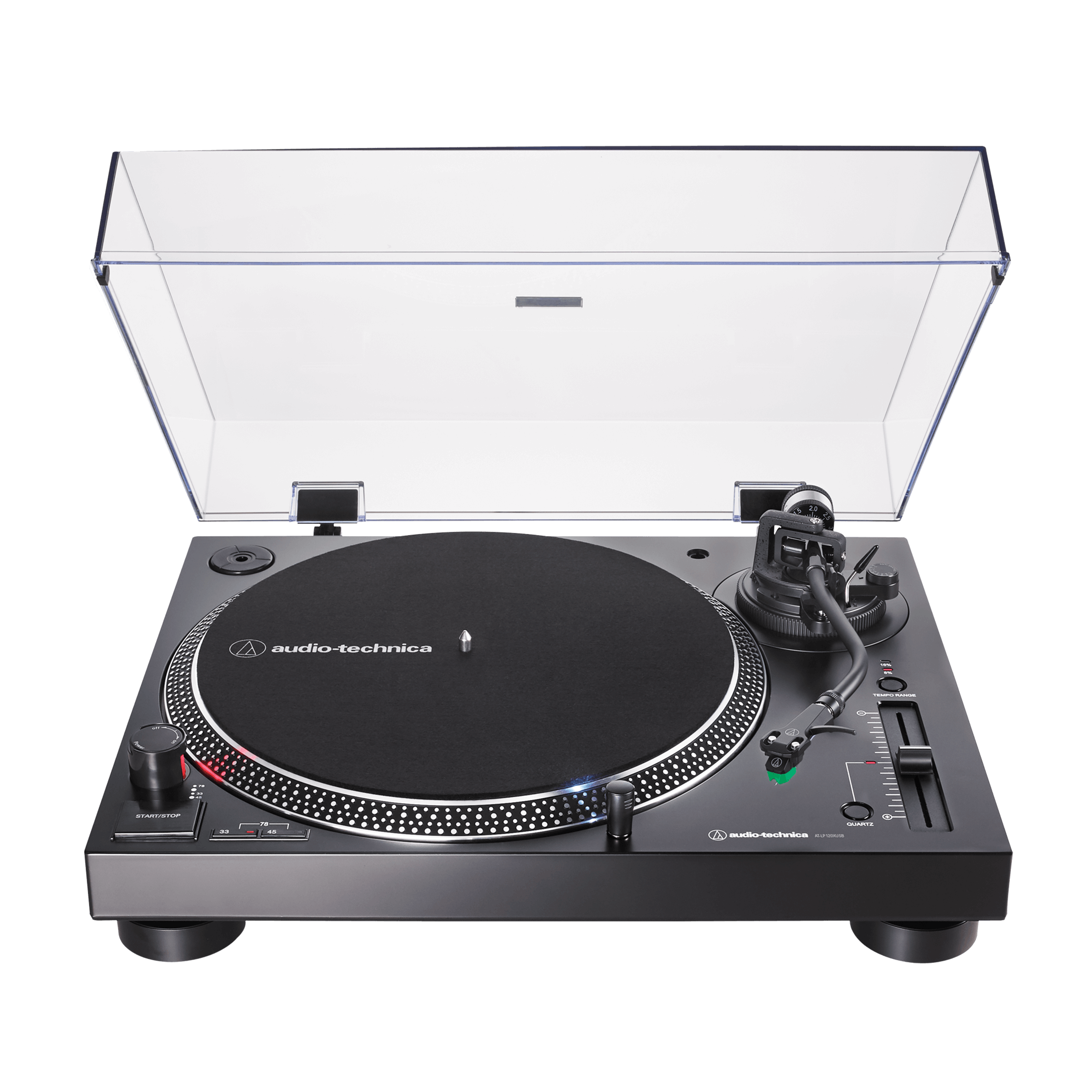

Audio Technica LP120X Direct Drive Turntable

• Experience the high-fidelity audio of vinyl
• Direct-drive, DC servo motor
• Fully manual operation
• Adjustable dynamic anti-skate control
• Selectable 33/45/78 RPM speeds
• Professional-grade anti-resonance, die-cast aluminum platter with felt mat
• AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
• Built-in switchable phono pre-amplifier for phono- or line-level output
• Stroboscopic platter with speed indicator
• Variable pitch control with quartz speed lock
• Removable plug-type target light for easier cueing in low light
• Damped base construction for reduced low-frequency feedback coloration
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
• Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover

Type

• 3-speed, fully manual operation

Motor

• DC servo motor

Drive Method

• Direct drive

Speeds

• 33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter

• Die-cast aluminum

Starting Torque

• >1.0 kgf.cm

Braking System

• Electronic brake

Wow and Flutter

• <0.2% (WTD) @ 3 kHz (JIS)

Signal-to-Noise Ratio

• >50 dB

Output Level

• Pre-amp "PHONO": 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp "LINE": 240 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain

• 36 dB nominal, RIAA equalized

USB Function

• A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above

Power Supply Requirements

• 100 to 240 V, 50/60 Hz, 1.5A Max.

Dimensions

• 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H

Weight

• 8 kg (17.6 lbs.), without dust cover

Accessories Included

• AT-VM95E phono cartridge
• AT-HS6 headshell
• 1.9 m (6.2') USB cable
• dual RCA (male) to dual RCA (male) cable with ground wire
• counterweight
• felt mat
• dust cover
• 45 RPM adapter
• plug-type stylus target light

Tonearm type:

• Balanced S-shaped tonearm with detachable headshell

Effective arm length:

• 230.5 mm

Overhang:

• 16 mm

Tracking error angle:

• Less than 3 degrees

Applicable cartridge weight:

• 3.5-8.5 g Anti-skating range:

0-4 g Replacement Stylus:

• AT-VMN95E USB operation

System requirements

• PC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above
